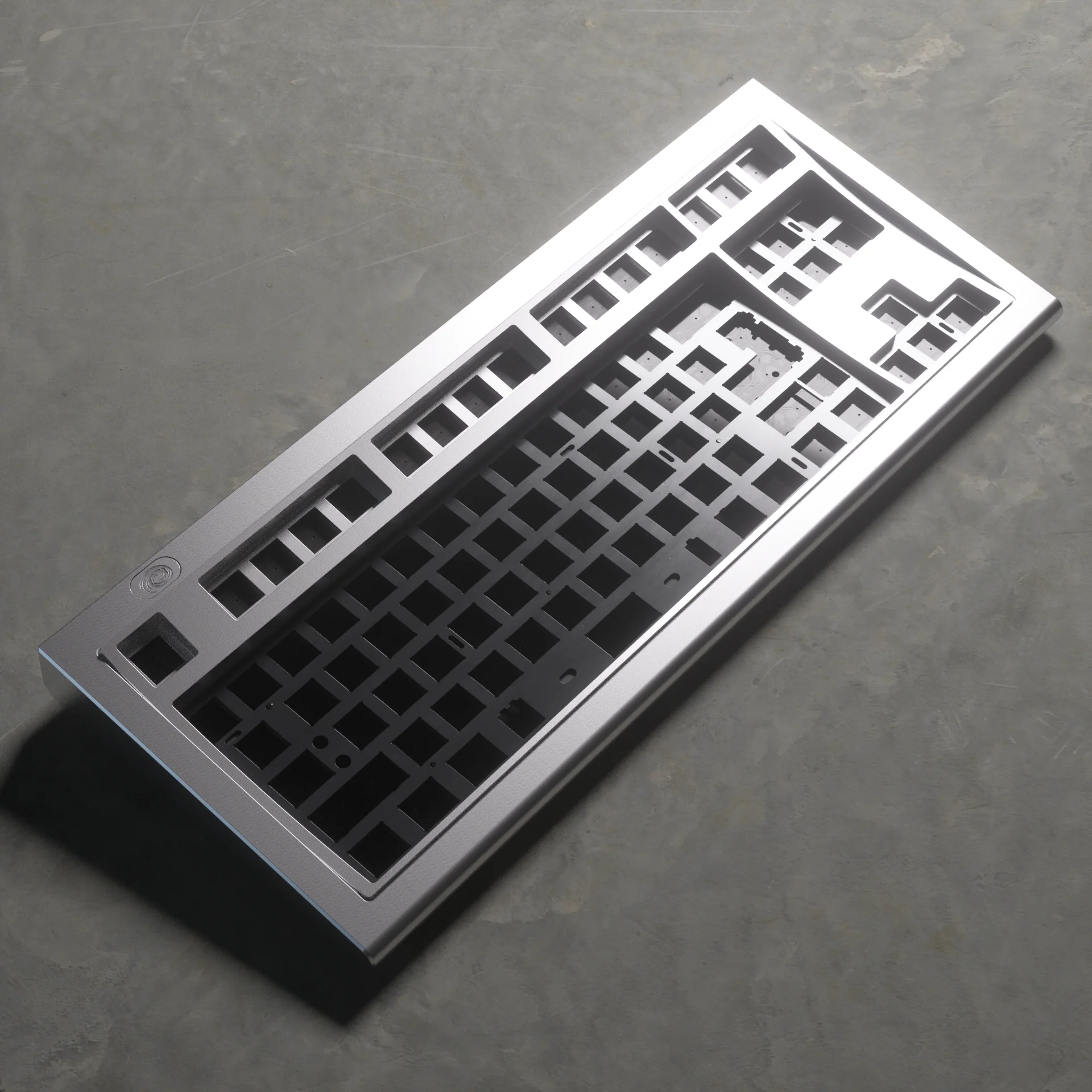

Vortex Model M SSK KIT



Add ons:

Aluminum Plate

Brass Plate

Solderable PCB

We have offered the options for WK case with 7u hot-swap PCB.

The 7u hot-swap PCB(ANSI/ISO) has the winkeys(1u) on it,you could place it into the WK case

We suggest customers to take videos when unboxing. (In case the product is damaged during shipping)

Specifications:

- Wired
- ANSI / ISO Layout
- WK / WKL

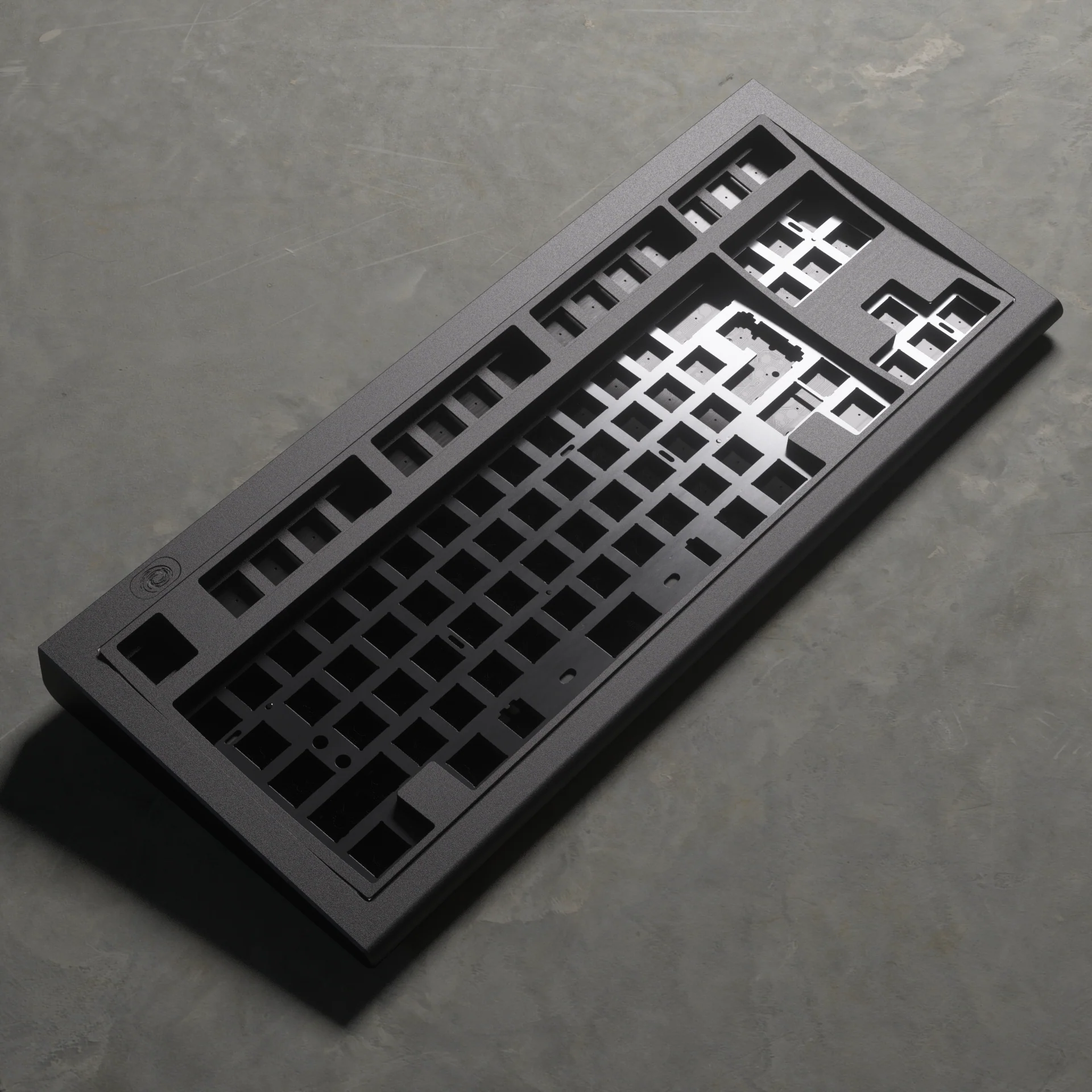

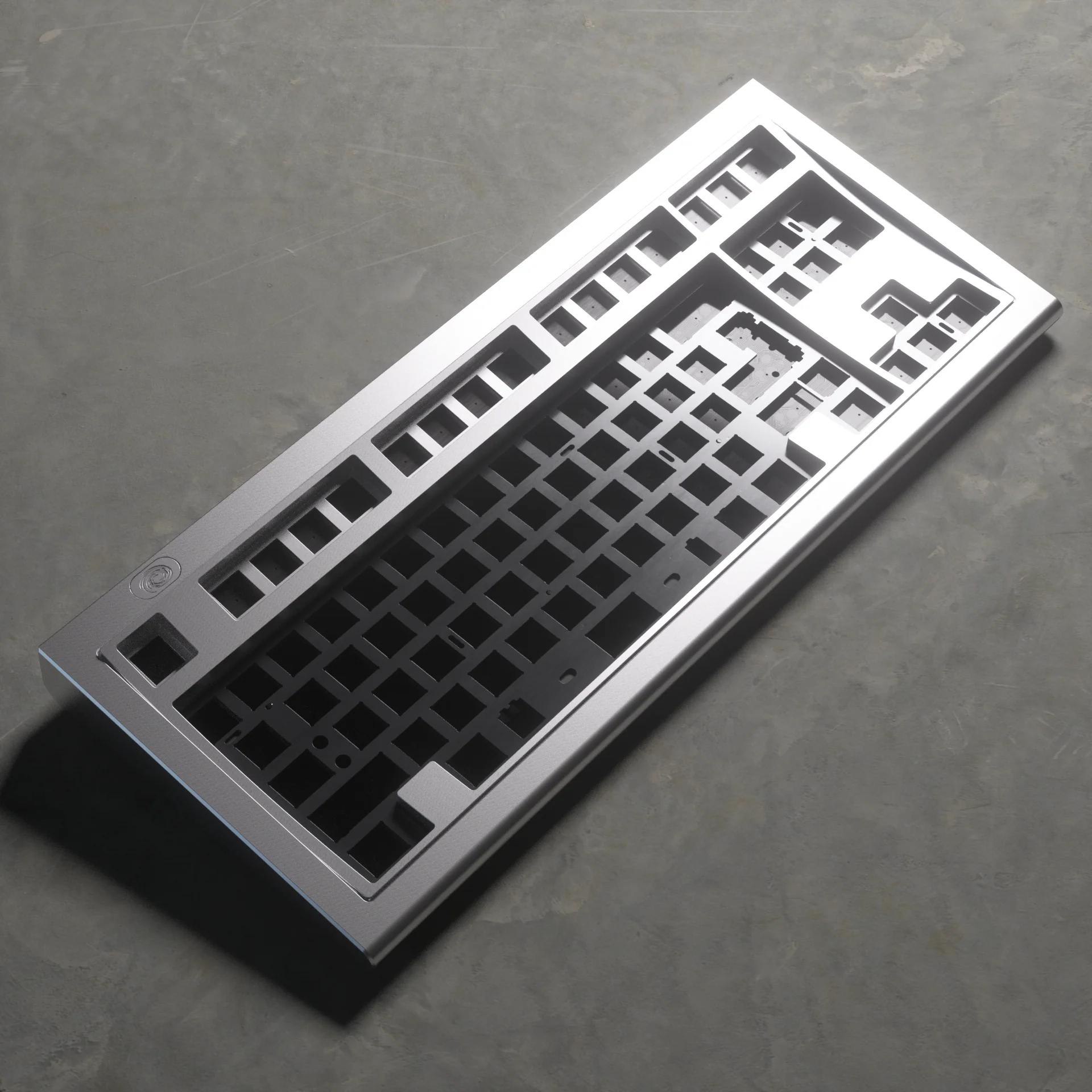

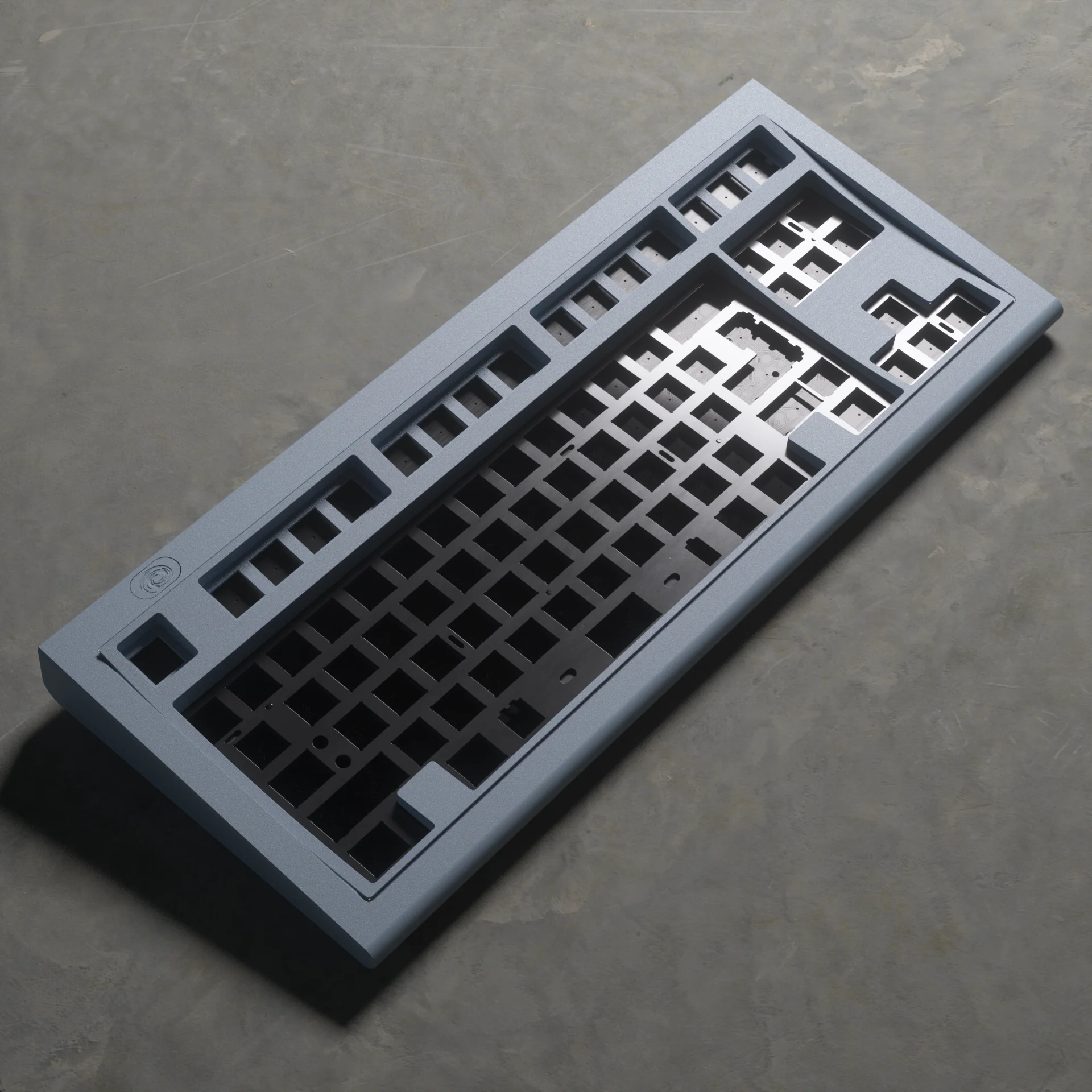

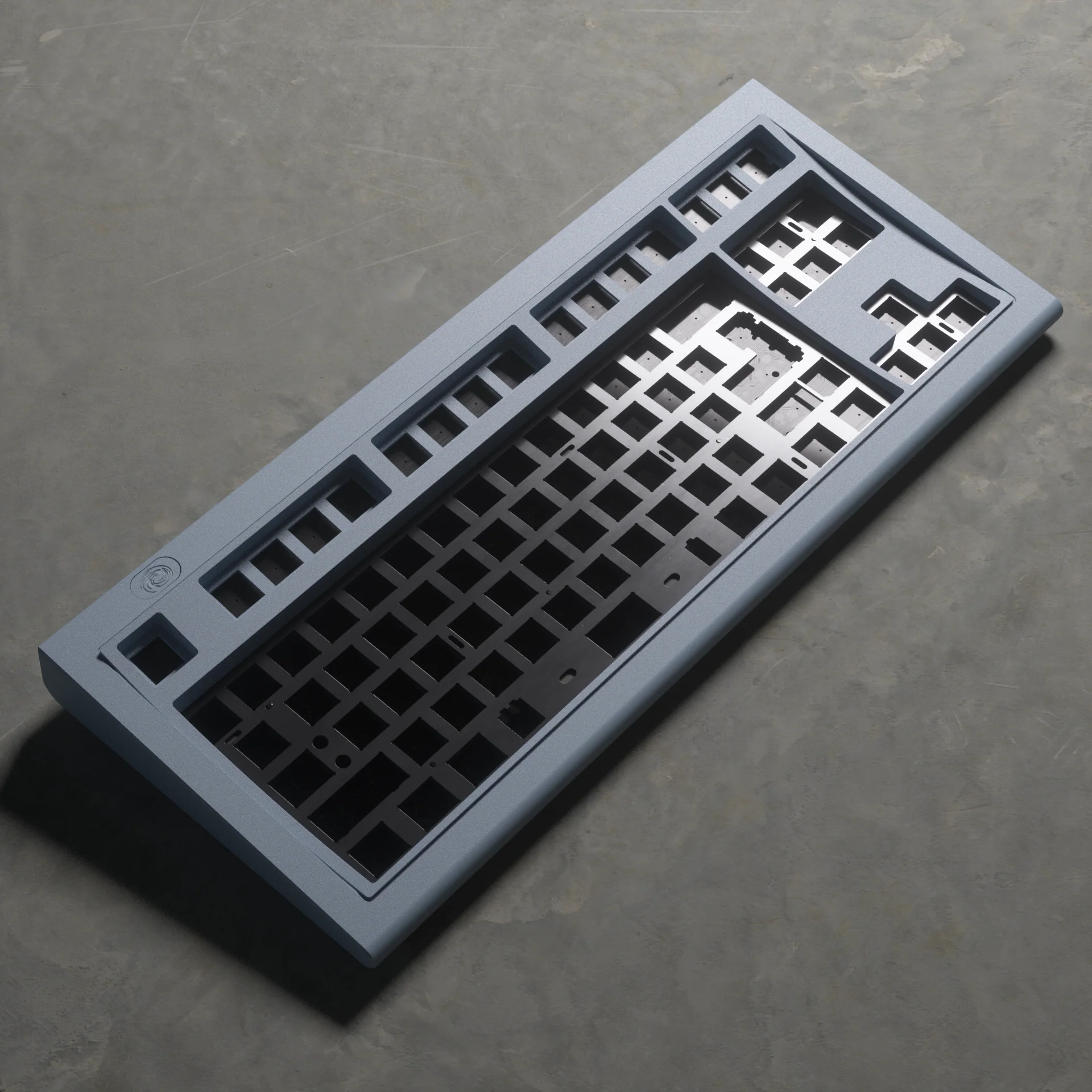

- Case Color: Black,Space Grey,Silver,Blue
- Programmable via QMK/VIA/Vial
- N-Key Rollover
- Gasket Mount Structure
- Compatible With MX Switches And Clones (3-pin&5-pin)
- South-facing Switches And LEDs
- Customizable RGB Using VIA/Vial Software
- 1.6 mm Thickness PCB
- PCB Mount Stabilizers (Not included)
- USB Type-C Connectivity
- Vortex Aluminum Badges
- Only Solderable PCB supports stepped Caps lock and Tsangan layout

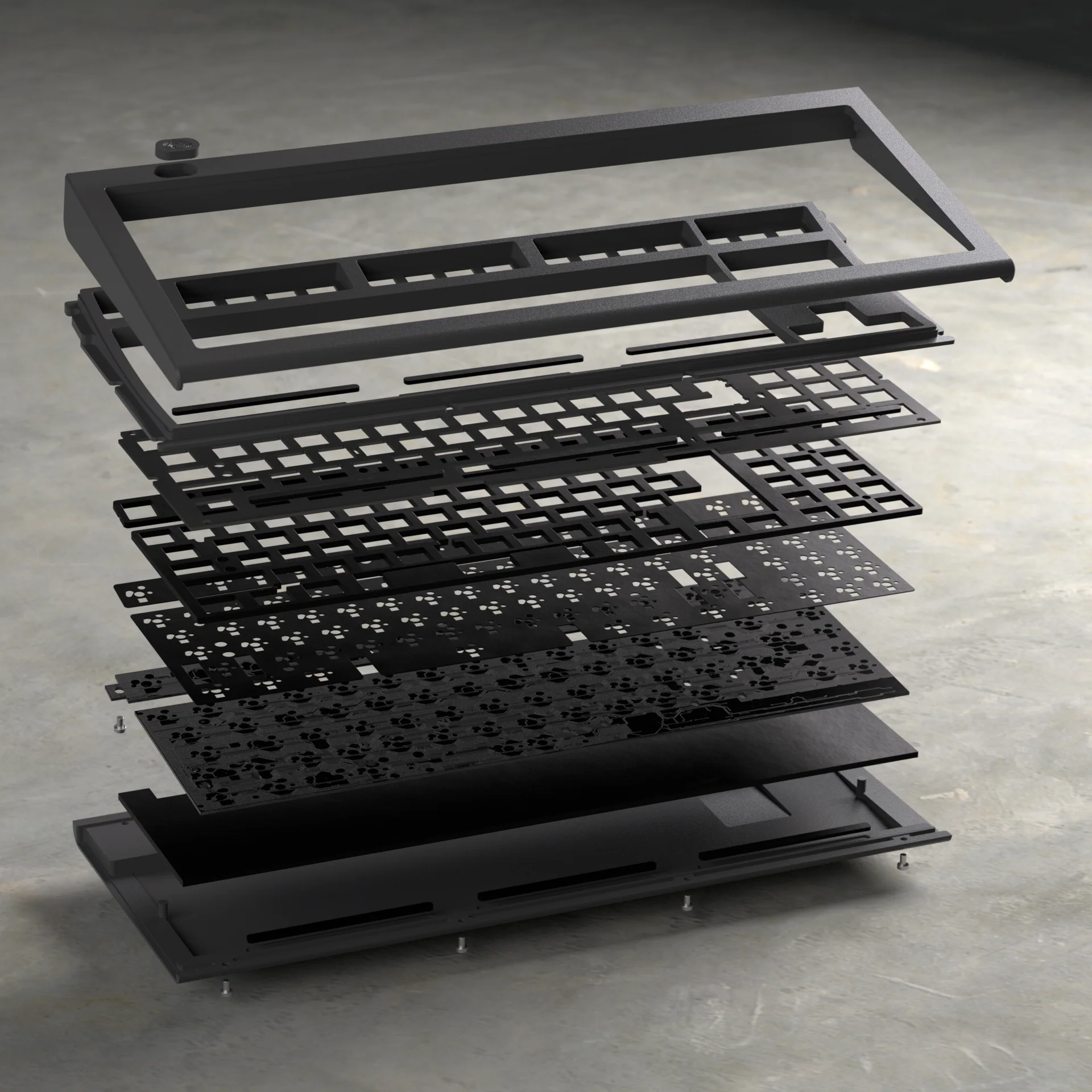

Includes:

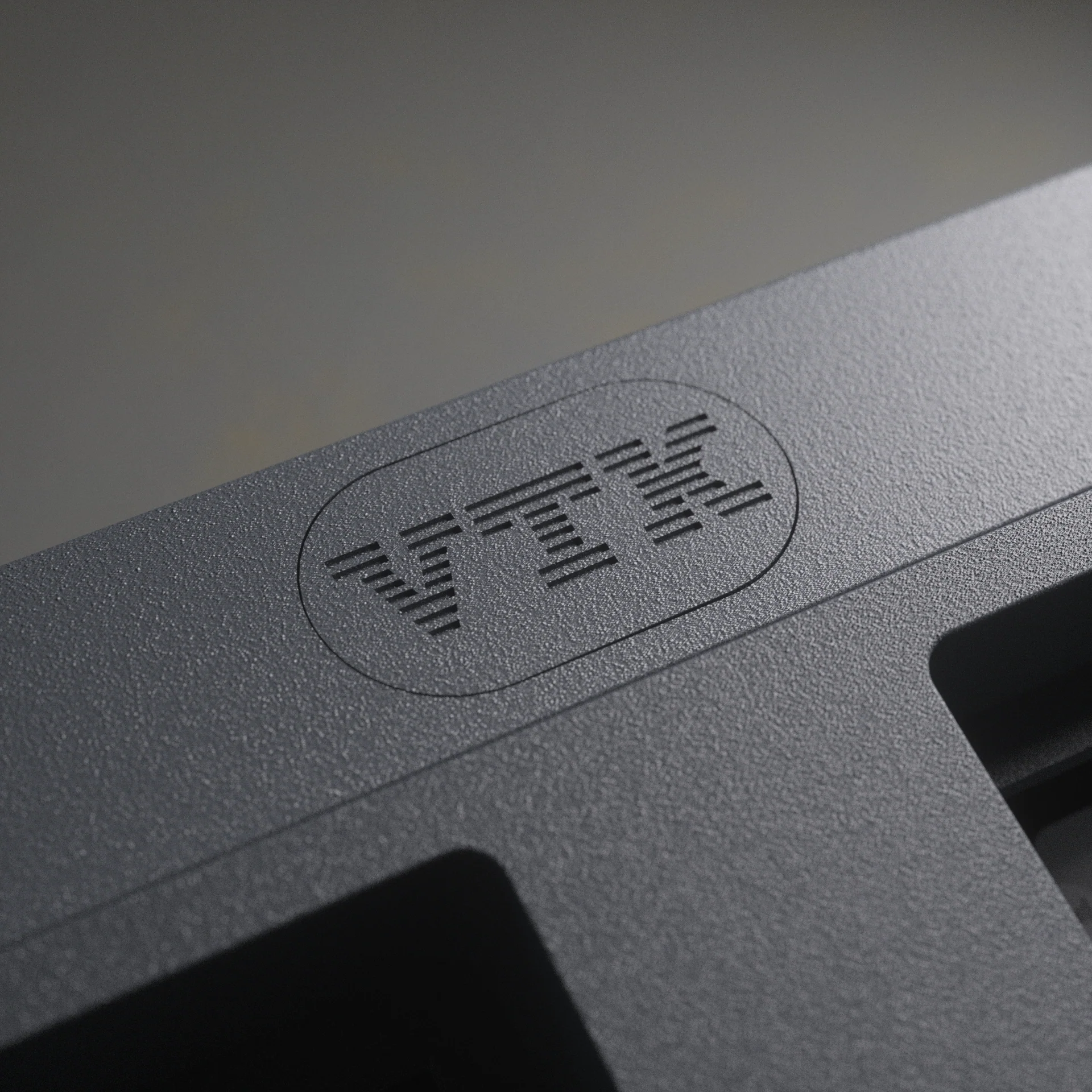

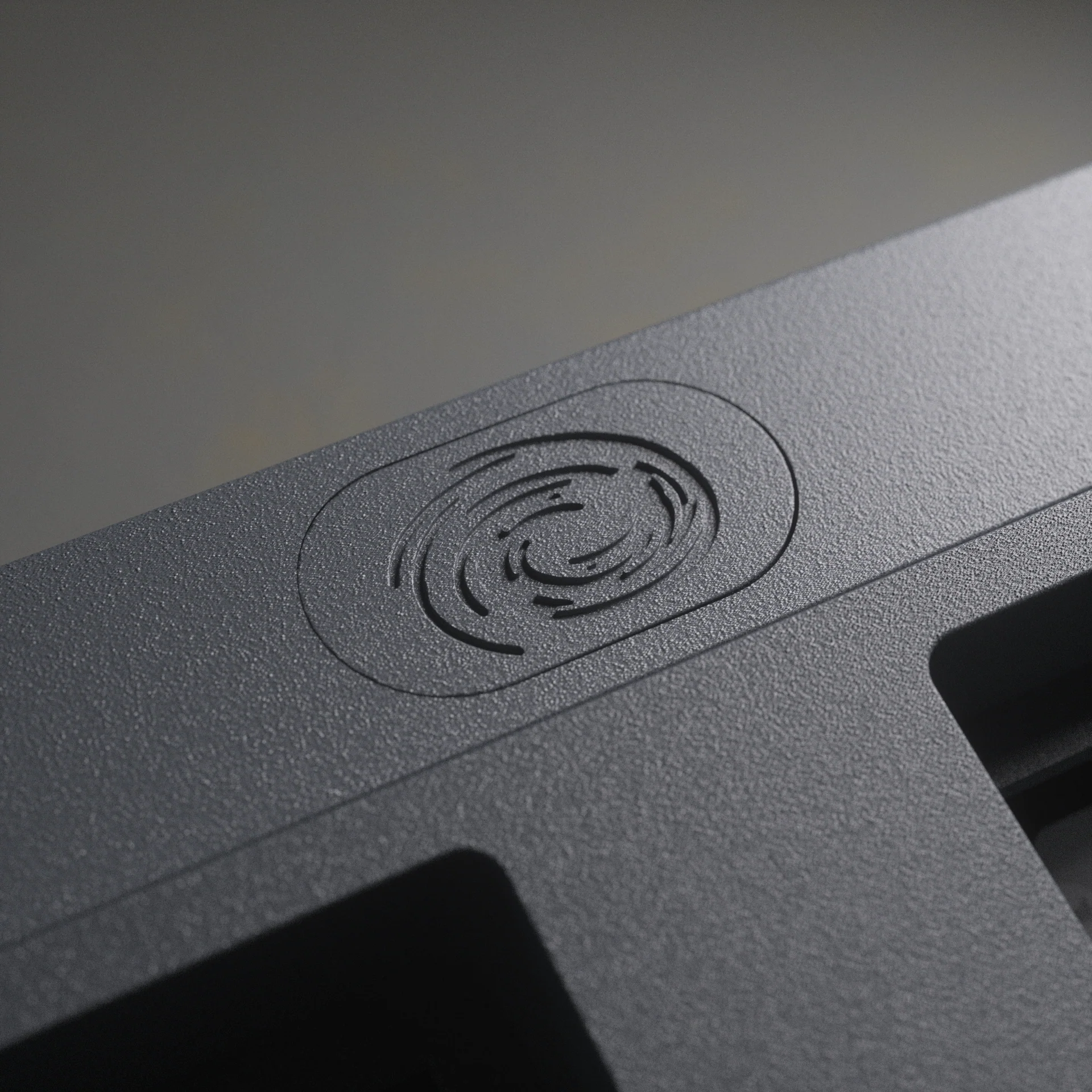

• Aluminum Badge x2 (Vortex Logo And "VTK")

 *Additional badge-"VTK" is only included in preorders

• Top And Bottom Case x1
• FR-4 Plate x1
• Hot-swap PCB x1
• USB Daughter Board x1

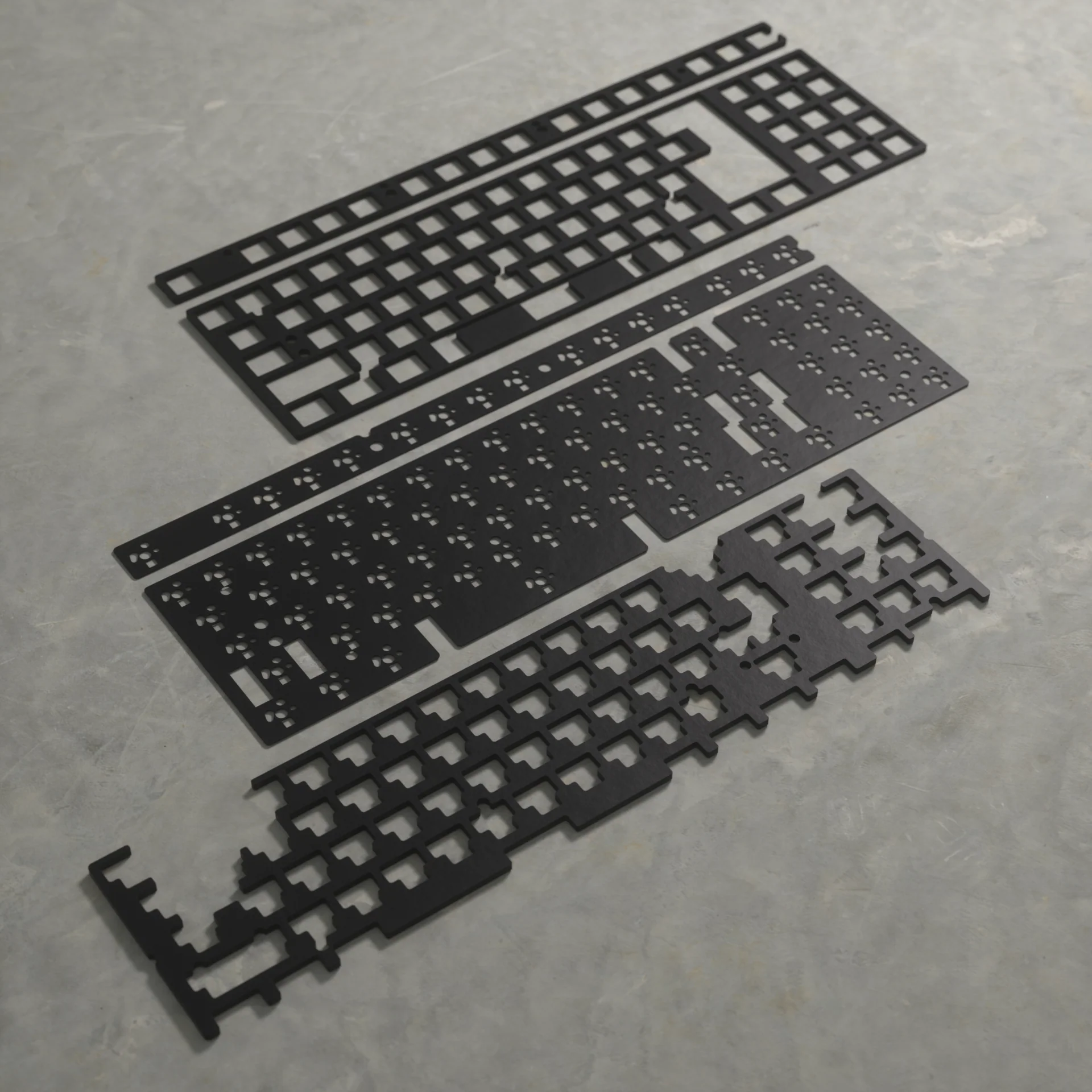

• Plate Foam: 3mm x2 (Main PCB And F-row)
• Poron switch Pad: 0.5mm x2 (Main PCB And F-row)
• Bottom Case Sound-dampening Foam: 3mm x1 (Main PCB)
• Gasket Set x1
• M3 Scerw Set x1
• Rubber Feet Set x1
• Carrying Case x1

*Not Includes:

• PCB Mount Stabilizers
• Cable
• Switches
• Keycaps
• Switch Puller
• Keycap Puller

Slight scratches to a case or any components are acceptable to our quality standard.

If you have any problem or question, please contact your original vendor that you purchased from.

We use the same plate for both ANSI, ISO and Tsangan layout.
If you purchase any PCB with different layout for extras, you won't have to buy an additional plate.

Backlit:

- RGB



Product Size:

- L*W*H : 39.0*16.5*1.2 cm ± 0.3

 -L*W*H : 39.0*16.5*3.0 cm ± 0.3

Product Weight:

- Case only : 1453.0 (g) ± 10

- All components added together: Approximately : 3kg



Typing Angle:

- 6°



Warranty:

*No warranty
